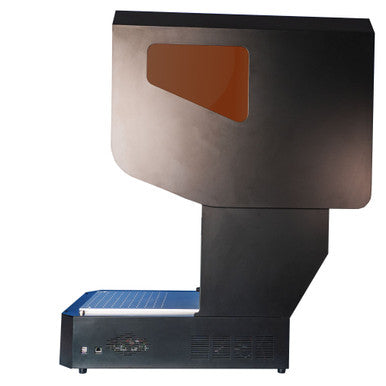

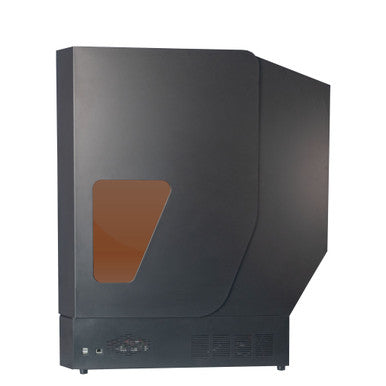

Muse UV Galvo Laser - AI 3D Scan 3D Engrave
Sale price$17,995.00
Choose options
Muse UV Galvo Laser - AI 3D Scan 3D Engrave
Sale price$17,995.00
- New Optional Dual Camera - Overview + Coaxial: coaxial camera has same optical path for magnified view through galvo mirrors and allows precise positioning of laser and real world within 2um (see video)
- New Swivel Enclosure for 2023: lid swivels like a motorcycle helmet allowing full access from 3 sides to allow extra large items like a full size guitar or .308 hunting rifle to be engraved
- Full 3D Engraving on curved surfaces. Upload STL/OBJ (from CAD or 3D Scanner) and FSL RE3 will project wrap your file around the surface. Eg can do cylinders, cones or sphere without a rotary (around 90 degrees field of view). Laser will move Z axis in sync with galvo and engrave slices for full 3d on a curved surface. New for 2023.
- Full 3D Engraving inside Glass Crystals. Upload 2D portraits and FSL will AI convert to 3D OBJ file ready to be engraved inside a glass crystal. Will also take any textured OBJ 3d file directly (3d scanner compatible).
- 355nm Pulsed UV Laser for superior marking quality on nearly any material, 30x smaller than CO2
- Ultra high speed, 5000mm/sec laser marking on many materials, 10-100x speed of gantry CO2 laser
- Superior glass engraving over CO2 with 100x more detail and no jagged edges (Requires 5W and above)
- Unlike a CO2 laser which can only do glass surface marking, a UV laser is capable of both surface and subsurface float marking of glass up to 4" deep.
- Subsurface marks float in the middle of the glass and are ultra-durable/tamperproof (requires 3D Subsurface Glass Marking Lens).
- Marks nearly all plastics and metals
- Multicolor marking on steel (deep black, red, green, white, etc)
- Marks powder-coated metals without damaging powder-coat
- Marks paper, cardboard, wood white without damaging the surface
- Marks aluminum oxide, silicon and more
- Cutting: Can cut through the following materials using micromachining fine details, up to 3mm glass, 3mm aluminum, 3mm steel, 6mm wood. Wood cuts without charring and cuts quickly, glass/metals are relatively slow but still cut through all the way through with no splatter/recast (10W+ recommended)
- New!: High power lasers above 10W available up to 30W. Above 10W the laser system is custom designed for your needs as the optics required are specially designed to ensure stable operation.
- BROWSER BASED SOFTWARE - Windows, Mac and Linux compatible. Try it here

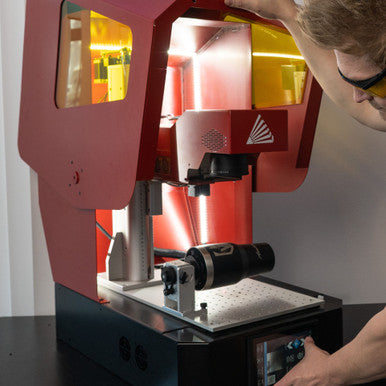

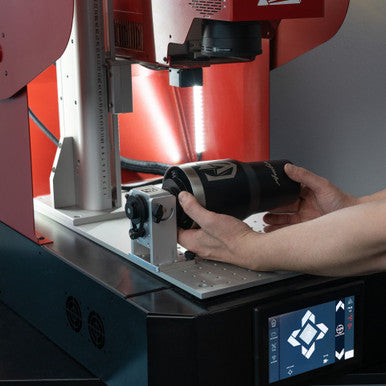

- SYNCRO ROTARY ATTACHMENT - (optional) allows for cylindrical objects such as cups to be engraved. True 4th axis synchronization between laser and rotating axis for continuous smooth engraving under rotation with no split lines unlike competing rotaries with fixed indexing.
- MATERIAL DATABASE - common materials such as aluminum, steel, black acrylic, lexan, leather, granite and more have built in presets for easy workflow.
- 3D Engraving: Motorized 3rd Z-axis allows focusing multiple heights in the same job and for curved surfaces
- 5" LCD TOUCH SCREEN - allows users to control major functions right from the machine.
- 3D CAMERA POWERED MOTORIZED AUTOFOCUS - takes 3D images of what's inside your laser for extremely accurate design placement on multiple height objects.
- AI Object Detection/Orientation: Using advanced Cloud GPU processing, automatically recognizes objects even in complex backgrounds and generates orientation for aligning markings automatically
- ULTRA-RELIABILITY - Solid-state UV laser requires no water cooling and has no consumable parts with estimated lifetime of more than 10,000hrs.
- ULTRA-PRECISION - Closed loop galvonometer scanners with encoder feedback project the laser beam with no additional mechanical parts such as belts, gears or pulleys to ensure perfect results each time
- POWER OPTIONS - 5W, 10W, 15W, up to 30W (custom order)
- TECHNICAL SUPPORT - via phone and email.
- 1 YEAR WARRANTY
