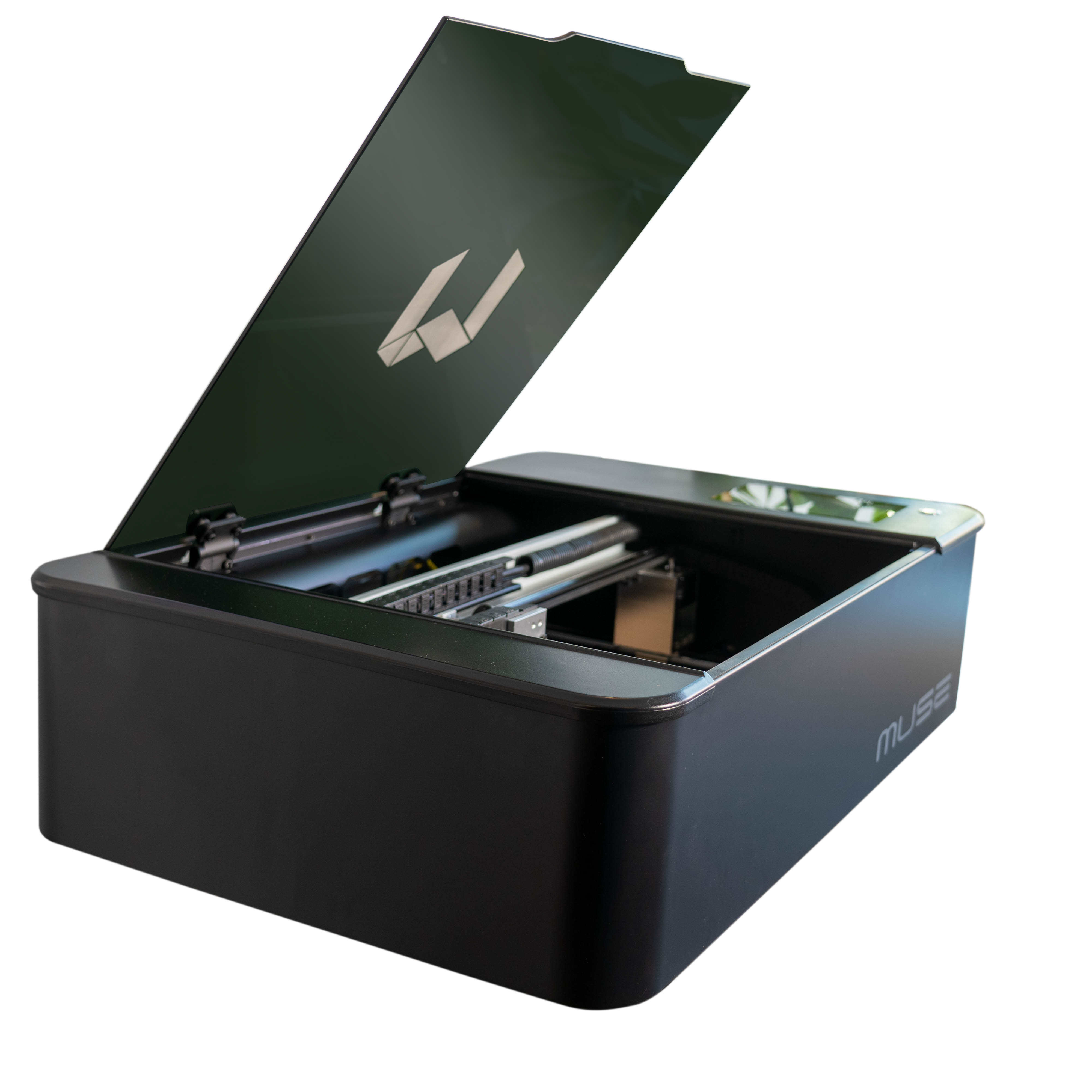

Muse 3D Autofocus 20"x12" Desktop CO2 Laser
Muse 3D Autofocus 20"x12" Desktop CO2 Laser
Muse 3D Autofocus 20"x12" Desktop CO2 Laser
Muse 3D Autofocus 20"x12" Desktop CO2 Laser
Muse 3D Autofocus 20"x12" Desktop CO2 Laser
Muse 3D Autofocus 20"x12" Desktop CO2 Laser
Craft Core Supply

Muse 3D Autofocus 20"x12" Desktop CO2 Laser

Sale price$4,499.00
Muse 3D Autofocus 20"x12" Desktop CO2 Laser
Muse 3D Autofocus 20"x12" Desktop CO2 Laser Sale price$4,499.00

Key Features

  • Patented Removable floor to engrave on material larger than the internal work area
  • RetinaEngrave v3.0 self-hosted browser-based laser control and design software
  • Intel RealSense™ 3D Camera option 3D scans every pixel for precision XY and focus position
  • Motorized Autofocus
  • Sleek onboard LCD touchscreen control
  • Cuts up to 1/4 inch material
  • Engraves up to 1000 dpi resolution
  • Optional accessories like the rotary and riser engrave on rounded or larger objects
Working Area
  • Engraving Area: 20" x 12" (508mm x 305mm)
  • Z-Height: 2.5"
Weight & Dimensions
  • Machine Dimensions: Width: 32.3" x Depth: 20.3" x Height: 8.5" (820mm x 515mm x 215mm)
  • Weight: 54 lbs (24.5 kg)
Laser
  • Laser Classification: Class 3
  • Laser Type: Sealed CO2 Laser Tube
  • Laser Power: 40W
  • Focus Lens Included: 2"
  • Integrated Red Guiding Laser and Beam Combiner
  • Resolution: Up to 1000 dpi
Power
  • Power Supply: AC 110V native
  • Gross Power: < 1000W
System
  • Operation Modes: Precision Raster, Vector or Combined Modes
  • Motion Control: High-speed, High-precision stepper motors
  • Operating Temperature: 0C - 45C
