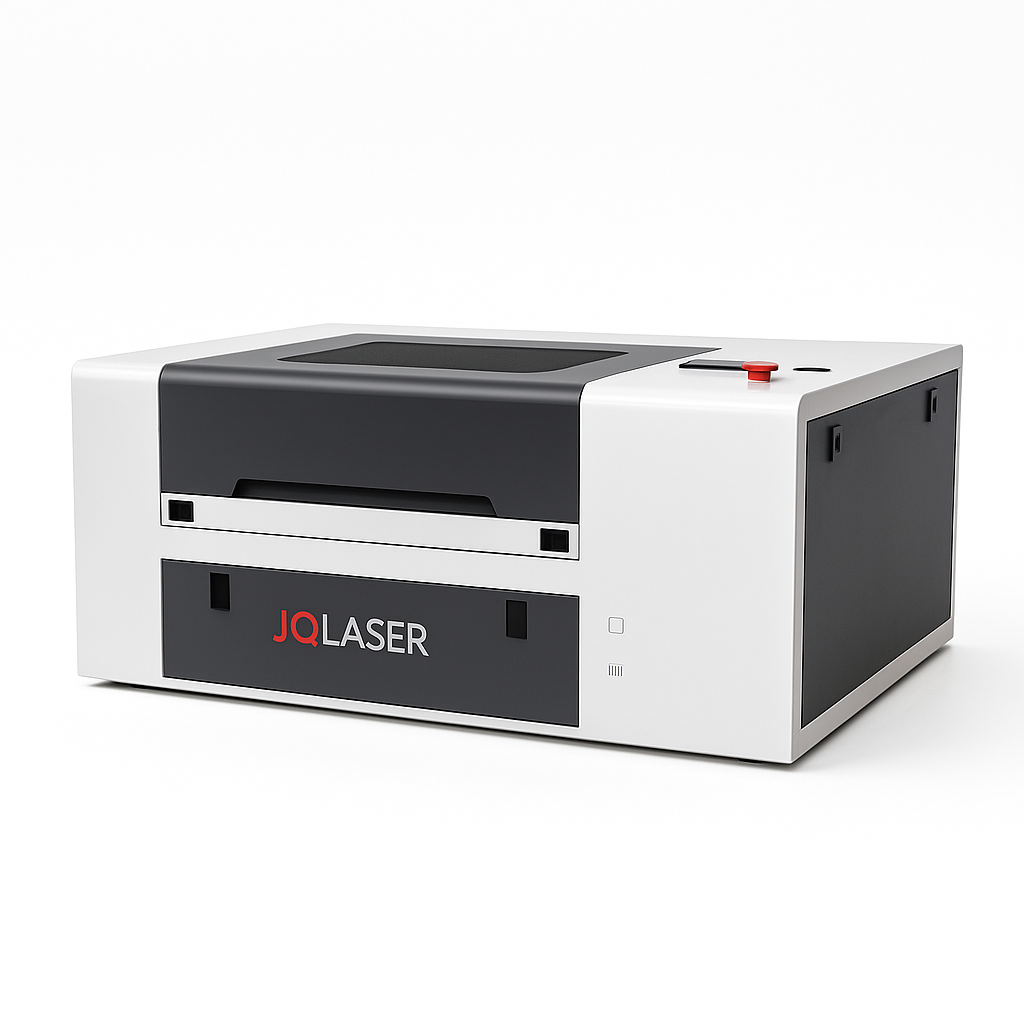

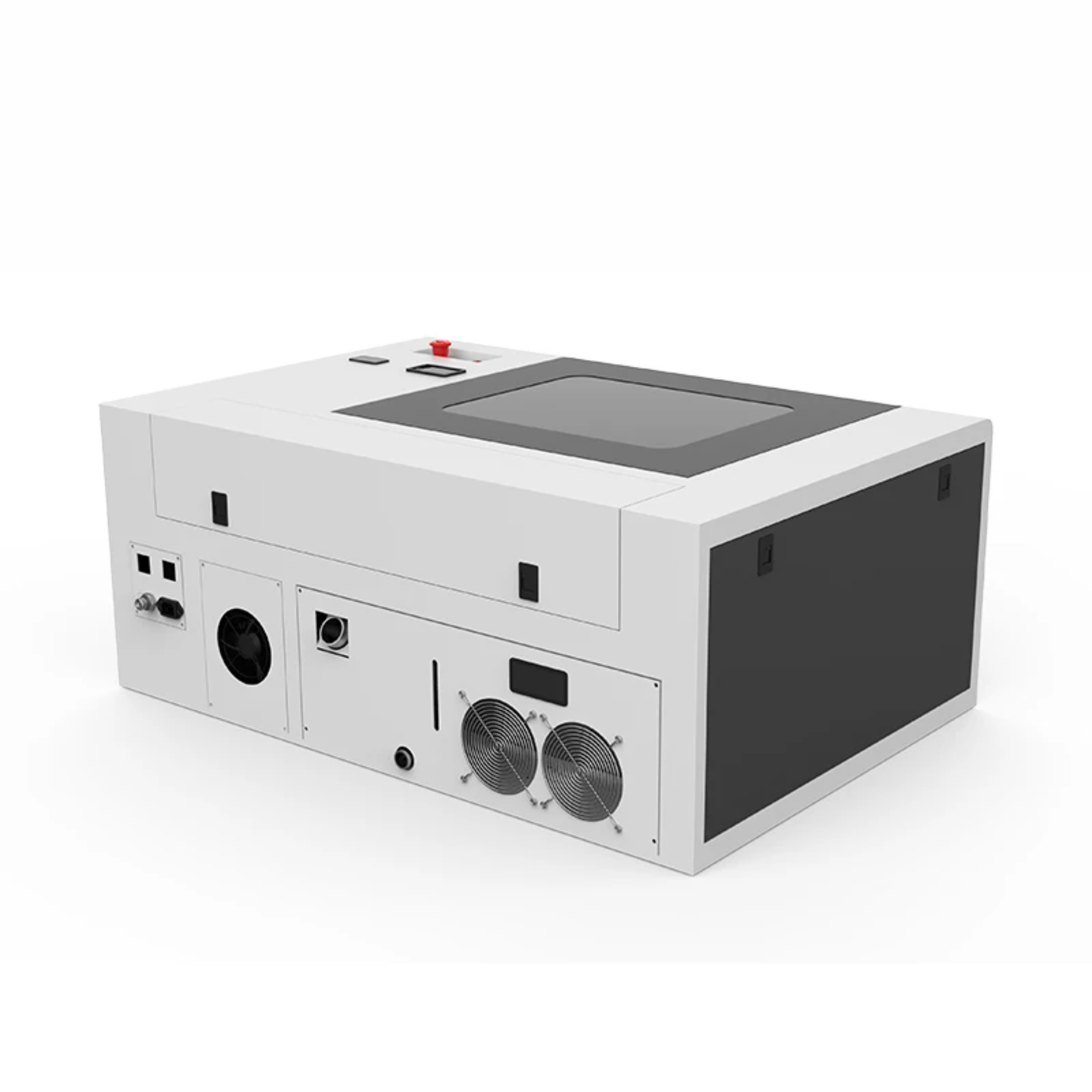

JQLaser EdgeCut 100 Pro

The JQLaser EdgeCut 100 Pro is an advanced desktop laser engraver engineered for speed, precision, and power. With a sealed CO2 laser tube, dual-exhaust system, and touchscreen interface, it delivers clean, consistent cuts across a wide range of materials. Ideal for signage, prototyping, and fine art applications.

Specifications

• Material: Powder-coated steel housing with acrylic viewport

• Dimensions: 980 mm (L) x 720 mm (W) x 380 mm (H)

• Features: Enclosed design, LCD touchscreen, dual fans

• Working Area: 600 x 400 mm

• Laser Power: 100W CO2 laser tube

Features

• Touchscreen Controls: Intuitive LCD panel for full operation

• Dual Ventilation Fans: Efficient smoke extraction system

• Precision Rails: High-speed linear rail for clean motion

• Emergency Stop: Integrated button for safety compliance

• Air Assist: Reduces flare-ups and improves cutting quality

• Remote File Upload: USB and Wi-Fi connectivity

Maintenance

• Daily: Wipe lens and clean bed surface

• Weekly: Check water cooling and lubricate rails

• Annually: Replace CO2 tube and recalibrate optics

Warranty

• Structure & Chassis: 3 years

• Laser Tube & Controls: 1 year
